Advanced Water Filtration Systems
Pure, clean water for every application - Residential to Industrial
Types of Filtration Systems
Choose the right filtration technology for your specific needs
Sand Filtration
Ideal for removing suspended solids, turbidity, and larger particles from water.
- Removes particles down to 20-50 microns
- Low maintenance requirements
- Backwash cleaning system
- Long media life (5-7 years)
Carbon Filtration
Removes chlorine, chemicals, odors, and organic compounds from water.
- Removes chlorine & chloramines
- Eliminates bad taste & odor
- Adsorbs VOCs & pesticides
- Media life: 6-12 months
Micron Filtration
For removing fine particles, sediment, and microorganisms from water.
- 1-20 micron filtration range
- Removes cysts & bacteria
- Disposable/reusable cartridges
- No chemicals required
Filter Media Options
How Filtration Works
The 4-step process to clean, safe water
Raw Water Intake
Water enters the system through intake screens
Pre-Filtration
Large particles and sediment are removed
Main Filtration
Media beds remove fine particles & contaminants
Clean Water Output
Filtered water is collected and distributed
Our Filtration Products
Comprehensive range of filtration systems

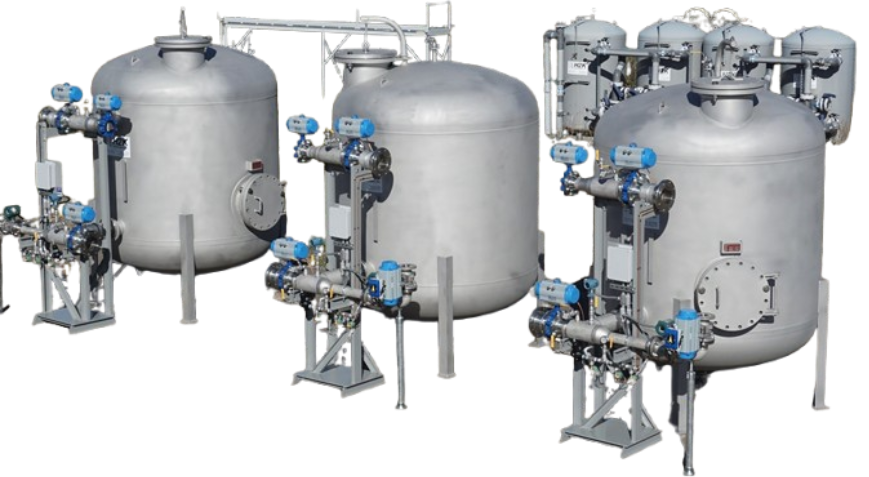

Industrial Sand Filters
Heavy-duty filtration for manufacturing plants
- Sizes: 18" to 96"
- Flow: 5,000 - 200,000 LPH
- Media: Quartz Sand/Anthracite
- Automation: Manual/Auto
Domestic Pressure Filters
Compact systems for homes & apartments
- Sizes: 10" to 24"
- Flow: 500 - 5,000 LPH
- Media: Multi-Layer
- Pressure: 3.5 - 7 kg/cm²

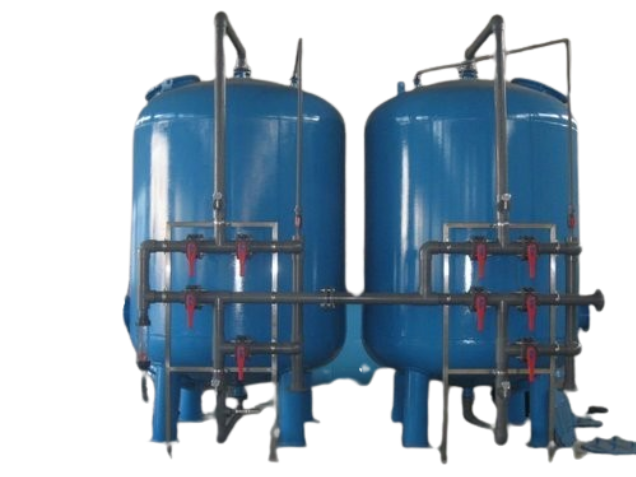

Commercial Carbon Filters
For hotels, restaurants, and commercial buildings
- Sizes: 12" to 48"
- Flow: 2,000 - 50,000 LPH
- Media: GAC/Catalytic Carbon
- Chlorine Removal: 99%

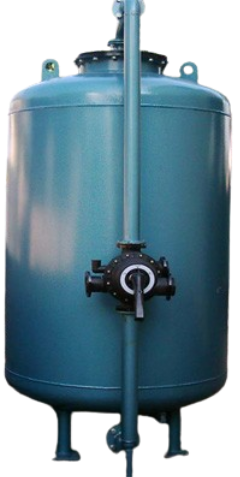

Iron Removal Filters
For groundwater with high iron content
- Sizes: 14" to 60"
- Flow: 1,000 - 100,000 LPH
- Media: BIRM/Greensand
- Iron Removal: Up to 15 ppm
Technical Specifications
Detailed specifications of our filtration systems
Contaminant Removal Efficiency
What our filtration systems remove from water
| Contaminant | Type | Removal Efficiency | Media Used |
|---|---|---|---|
| Suspended Solids | Physical | 99% | Sand, Cartridge |
| Chlorine & Chloramines | Chemical | 99% | Activated Carbon |
| Iron & Manganese | Metals | 95% | BIRM, Greensand |
| Turbidity | Physical | 98% | Multi-Media |
| Organic Compounds | Chemical | 85% | Coconut Carbon |
| Sediment | Physical | 99% | Sand, Cartridge |
Applications
Where our filtration systems are used
Industrial Process Water
Manufacturing, cooling towers, boilers
Hotels & Resorts
Guest rooms, kitchens, swimming pools
Healthcare Facilities
Hospitals, labs, dialysis centers
Educational Institutions
Schools, colleges, hostels
Residential Complexes
Apartments, villas, townships
Food & Beverage
Bottling plants, restaurants, dairies
System Comparison
Choose the right system for your needs
| Feature | Basic Sand Filter | Multi-Media Filter | Carbon Filter | Iron Removal Filter |
|---|---|---|---|---|
| Particle Removal | 20-50 microns | 5-20 microns | Limited | 10-30 microns |
| Chemical Removal | No | No | Excellent | No |
| Iron Removal | No | No | No | Up to 15 ppm |
| Chlorine Removal | No | No | 99% | No |
| Backwash Required | Yes | Yes | Yes | Yes |
| Media Life | 5-7 years | 3-5 years | 6-12 months | 3-5 years |
Installation Process
Professional installation in 5 simple steps
Site Survey
Our engineers visit your site to assess requirements
System Design
Customized design based on water analysis
Delivery
Timely delivery of complete filtration system
Installation
Professional installation by trained technicians
Commissioning
Testing, training, and handover
Frequently Asked Questions
Common questions about water filtration
Sand media typically lasts 5-7 years, activated carbon lasts 6-12 months, and cartridge filters need replacement every 3-6 months depending on water quality and usage.
Regular backwashing (daily/weekly), periodic media replacement, valve maintenance, and pressure gauge monitoring. Automated systems require less manual intervention.
Standard filtration removes particles down to 1-5 microns but may not remove all microorganisms. For complete microbial removal, consider adding UV sterilization or membrane filtration.
Space requirements vary by system size. A typical 24" diameter system needs about 2x2 feet area plus access space for maintenance. Larger industrial systems may require dedicated rooms.
Yes, we provide complete turnkey installation including civil work, plumbing, electrical, commissioning, and operator training. We have installation teams across India.
